Product Description:

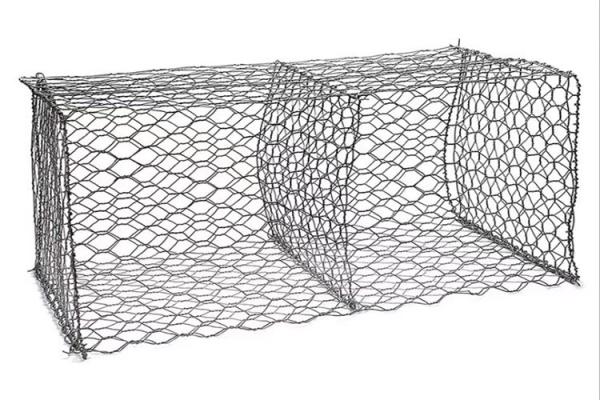

Gabion Box
Gabion Box is a type of welded wire mesh made of hexagonal wire netting. The wire diameter of the nettings can vary according to its hexagonal configuration.
Flat Gabion, also referred to as River or Reno Mattresses, are used in a variety of ways to protect against soil erosion over a flat or sloped area. Most notably, they are employed in the civil engineering industry, especially with the construction of roadway drainage structures.
Features:
- Product Name: Hexagonal Gabion Box
- Surface Treatment: Electro Galvanized, Hot-dipped Galvanized
- Lacing Wire: 2.0mm-2.2mm
- Selvedge Wire Zinc Coating: 220-280g/m2
- Weave type: Twist Type
- Size: 2mx1mx1m
- Hexagonal Hole: 80x100
- Material: Galvanized Iron Wire Mesh
- Net Type: Woven Gabion Net
- Type: Galvanized Gabion Box
Technical Parameters:
| Features | Specifications |
| Packing | In Bundle |
| Selvedge Wire | 2.2mm-3.2mm |
| Size | 2x1x1m, 3x1x1m, 4x1x1m, 2x1x0.5m, 4x1x0.5m |
| Tensile Strength | 380-550N/mm2 |
| Material | Galvanized Iron Wire Or PCV Wire |
| Weave type | Twist Type |
| Application | Construction Wire Mesh |
| Mesh Size | 60x80mm, 80x100mm, 100X120mm |
| Surface Treatment | Electro Galvanized, Hot-dipped Galvanized |
| Wire Diameter | 2.7mm-3.0mm |
| Focus | Hexagonal Gabion Box, Hot Dipped Galvanized Material Gabion Stone Cage, Gabion Boxes and Mattress |
Applications:
Mesh nets, geotextiles, geomembranes, geogrids and other engineering materials are used to reinforce and protect slopes of hills and mountains, road roofs, canal roofs, riverbanks and coasts.
It is used for reinforcing dams, spillways, entrances to irrigation works, sloping ground, walls, anti-slip, bridge foot, electric/telephone pole foundation pit, and the protection of discharge doors and drains.

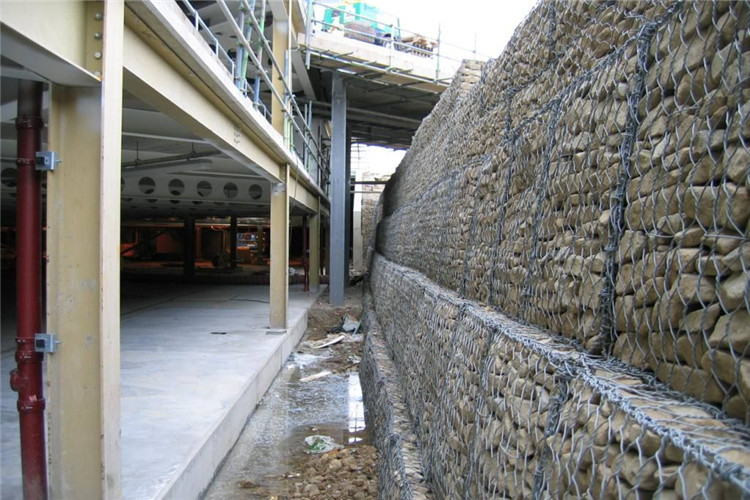

Besides, it is also applied to the building of retaining walls (gravity walls) to prevent landslides of mountainous roads, riverbanks and coasts, the paving of canals/ditches for erosion prevention, and the building of dams to block water and store water, controlling, coordinating and improving flow.
In addition, the mesh nets, geotextiles, geomembranes, geogrids and other engineering materials can be used in embankments, dams, slopes to prevent landslides, landslides and erosion, thus providing excellent protection for water and soil.

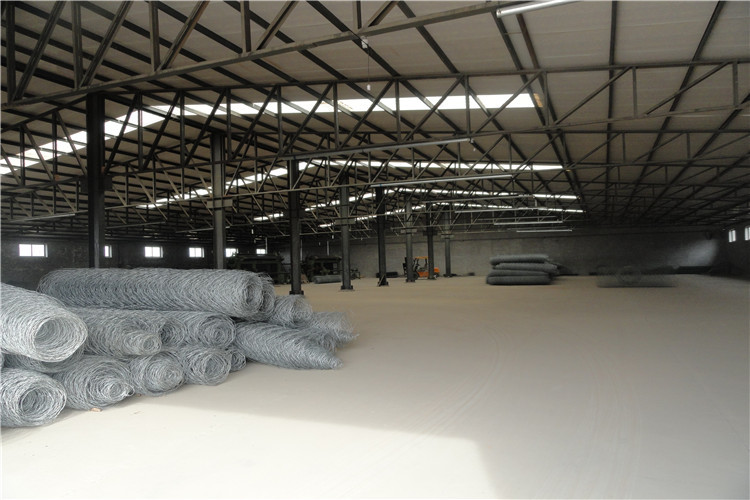

Packing and Shipping:
50-100 gabion wire mesh /per bundle,wrapped with 2 to steel strips,
It is compressed and to be bundled,then with pallets together.
It could be made to roll package
FAQ:
FAQ
- Q: What is Hexagonal Gabion Box?
- A: Hexagonal Gabion Box is a kind of wire mesh container made of hexagonal double twisted steel mesh fabric and lacing wire, and then filled with stones. It's a popular product of ZhongTeng, model number is ZT--013.
- Q: What certificates does the product have?
- A: Hexagonal Gabion Box is certified by ISO9001.
- Q: What's the minimum order quantity?
- A: The minimum order quantity is 100sets.
- Q: How much does it cost?
- A: The price is USD1.1-1.7/m2.
- Q: How long will it take for delivery?
- A: Generally it takes 3-7 days for delivery.
-
